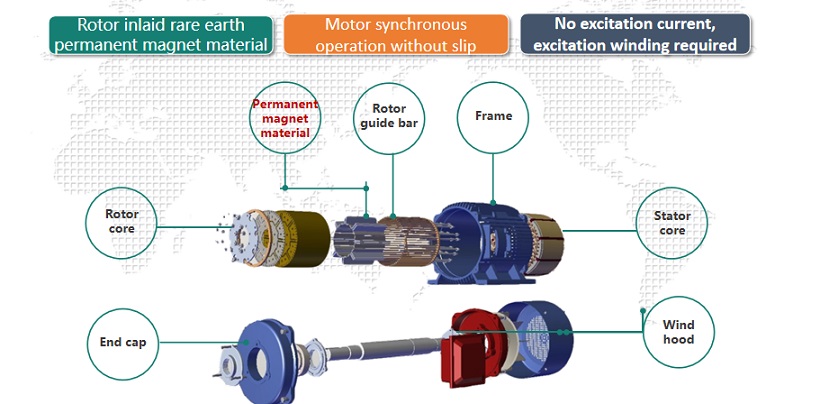

Permanent magnet synchronous motor mainly consists of stator, rotor and shell components. As with ordinary AC motors, the stator core is a laminated structure to reduce the motor operation due to eddy current and hysteresis effect of iron consumption; the winding is usually also a three-phase symmetrical structure, only the selection of parameters has a greater difference. The rotor part is in various forms, there is a permanent magnet rotor with a starter squirrel cage, there are also embedded or surface-mounted pure permanent magnet rotor. Rotor core can be made of solid structure, can also be made of laminated. The rotor is equipped with permanent magnet material, which is customarily called magnet.
Under normal operation of permanent magnet motor, the rotor and stator magnetic field are in a synchronized state, there is no induced current in the rotor part, there is no rotor copper consumption and hysteresis, eddy current loss, and there is no need to consider the problem of rotor loss and heating. Generally, permanent magnet motors are powered by special inverter, which naturally has the function of soft start. In addition, permanent magnet motor belongs to synchronous motor, with synchronous motor through the excitation strength of the power factor adjustment characteristics, so the power factor can be designed to the specified value.
From the starting point of view of analysis, due to the permanent magnet motor by the frequency converter power supply or supporting the actual frequency converter starting, permanent magnet motor starting process is very easy to realize; and frequency converter motor starting similar to avoid the ordinary cage asynchronous motor starting defects.
In short, the efficiency and power factor of permanent magnet motor can reach a very high, very simple structure, the market has been very hot in recent years.
MINGTENG permanent magnet motor has been committed to the research and development and production of more efficient and more stable permanent magnet motor for 16 years, and the products can reach the first class of China and the European IE5 energy efficiency level. With its excellent energy-saving effect, MINGTENG permanent magnet motors have become an important help for enterprises to save energy and reduce consumption, and at the same time, Our PMSM also stood the test of working conditions and time! In the future, we are looking forward to seeing more enterprises at home and abroad adopting Mingteng PM motors, contributing to the green and circular development of enterprises!
